Short Description:

ADVANTAGE FOR SOLAR WATER PUMP

1. With high efficiency permanent magnetic motor, efficiencyimproved 15%-30%

2.Environmental protection, clean energy, can be powered by bothsolar panel and battery

3.Over-load protection, under-load protection,lock-rotor protection,thermal protection

4.With MPPT function

5.Much longer life than the normal AC water pump.

APPLICATION FIELD

These water pumps are used in irrigation of agriculture, and also widely used for drinking water and living water use


Product Detail

Product Tags

PERFORMANCE CURVES

PERFORMANCE CURVES

Technical Parameters

ITEM Voitage P2 Max Flow Max Head Outlet Cable Solar Panel
KW HP open voltage power

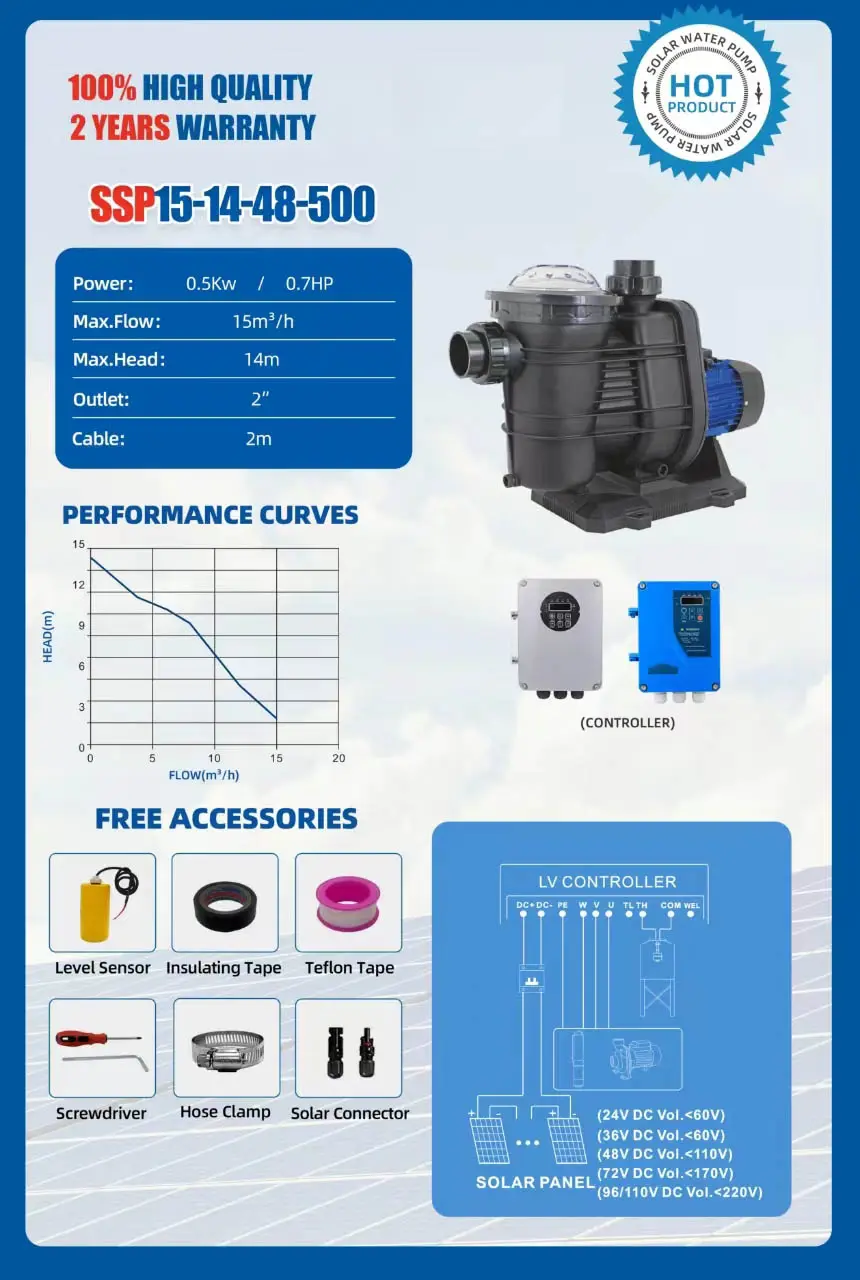

268 DK-SSP15-14-48-500 48V 0.5 0.67  15m3/h  14m 2X2'' 2m <110V ≥750W
269 DK-SSP20-19-72-900 72V 0.9 1.2  20m3/h  19m 2X2'' 2m <170V ≥1200W
270 DK-SSP27-19-110-1200 110V 1.2 1.6  27m3/h  19m 3X3'' 2m <210V ≥1500W



ITEM AC Voitage DC Voitage P2 Max Flow Max Head Outlet Cable Solar Panel
KW HP open voltage power
271 DK -SSP20-19-150-900-A/D 110V-240V 60V-430V 0.9 1.2  20m3/h  19m 2X2'' 2m <430V ≥1200W
272 DK-SSP27-19-200-1200-A/D 110V-240V 60V-430V 1.2 1.6  16m3/h  19m 3X3'' 2m <430V ≥1800W
